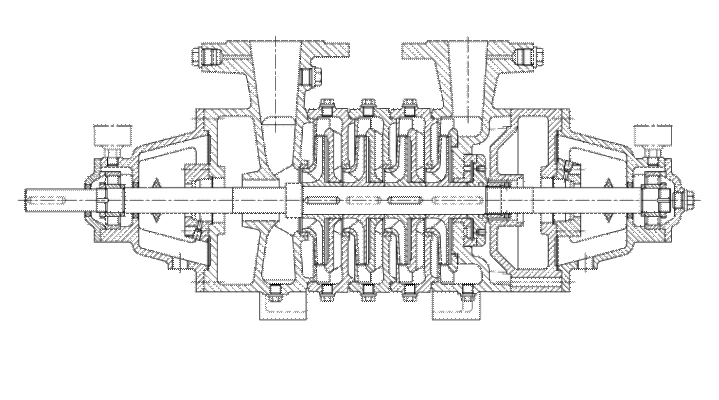

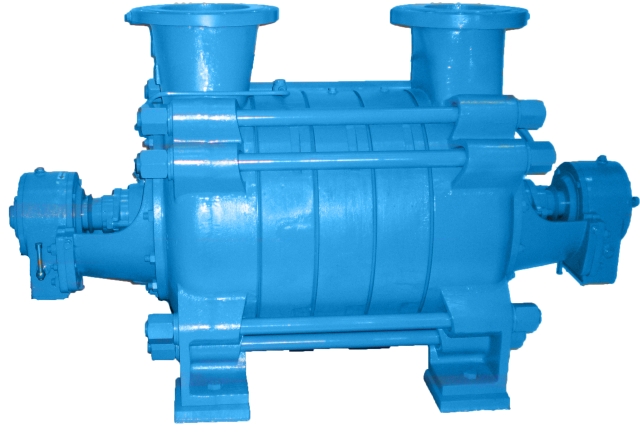

KV/VS - High pressure, ring suction centrifugal pump

A row of VS pumps is arranged to suit all requirements regarding supply of clean and slightly turbid water, cold oils, liquid fuels etc. It is also serviceable at civil and industrial waterworks, artificial rain, fire-fighting purposes, for the production of delivery water in hydraulic water plants etc. These pumps can supply medium of temperature up to 105°C. VSv pumps are applied for hot water supply up to 130°C, because pakcings can be cooled. They are equally adapted as feed water pumps and condensate supply pumps. VS design is adapted for temperatures lower than 105°C. KV pumps are fit for the pumping of clean water and the water containing substantial amount of impurities. Range of these pumps is suitable for particularly heavy suction conditions, then at the condensate supply, higher geodetic suction head and resistances in a suction pipe etc. They can supply medium of temperature up to 80°C. KVv and KV pumps with packings cooling chamber are applied to supply hot water up to 105°C. KVL and KVLv pumps are adapted for the pumping of condensate, clean water and the water containing substantial amount of impurities. These pumps are adapted for water supply up to 105°C. Application of these pumps to hot water supply up to 130°C is also obtainable by the cooling of packings. Range of these pumps is suitable for particularly heavy suction conditions. Their vertical desing makes possible safety operation and a very little space is necessary for their assembly.
